The tactical repeating crossbow niche is still relatively young — but Steambow has been shaping it from the beginning. They were among the first brands to take this category seriously, and to this day they remain one of the most established names in the modular “AR-style” crossbow space.

I’ve owned and shot a lot of crossbows over the years (around 30 models at this point), including much more expensive setups like my Scorpyd DS415 LT — and yet the PD5 has become my personal favorite. Not because it’s flashy, but because it feels like the most mature and “finished” platform Steambow has produced so far.

PD5 in the Steambow lineup
(and why it’s not the “beginner choice”)

If you’re new to Steambow’s AR-Series, the M10 Tactical is often the logical starting point: it’s much more affordable and uses detachable, AR-size magazines that fit standard AR-15/M4 mag pouches — a huge advantage for convenience and fast swaps.

The PD5, however, plays in a different league. It’s the premium option — not just in price, but in construction and concept. It uses an integrated 5-arrow magazine (fixed internal feed) instead of detachable mags, which makes it extremely reliable and hard to “mess up” under stress, but slightly slower to reload compared to a true mag swap. Steambow addresses this with 5-arrow speedloaders for quick replenishment.

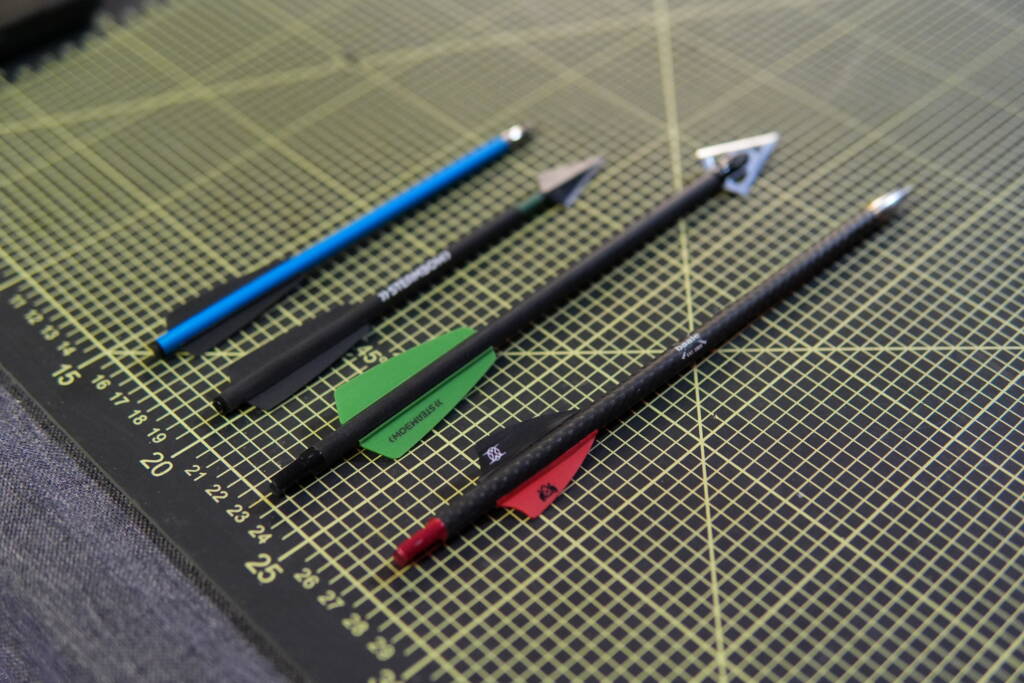

The “large caliber” difference: PD5 arrows vs. M10 arrows

This is the big one.

M10 Tactical: 6.2 × 162 mm bolts (≈ 6.3″)

PD5: 7.5 × 220 mm arrows (≈ 22 cm long)

In my own words, the PD5 is the “large-caliber” AR-Series platform. The thicker shaft allows for heavier arrows and (depending on arrow type) potentially larger cutting diameters — which can translate into more energy transfer downrange. The PD5 was explicitly designed around the advantages of these larger arrows, including an effective practical range often cited around 50 meters depending on limb and shooter.

Important legal note: Hunting regulations vary massively by country. In Germany, hunting with a crossbow is not permitted. If you’re reading internationally, always check your local laws first.

PD5 vs. PD5 Professional: the key upgrades

Steambow offers two main variants:

1. PD5 (standard):

• “PRO” limb (nominal 90 lbs)
• fiber optic front sight
• marketed more for sport/training

2. PD-5 Professional

• “Protector” limb (nominal 135 lbs)

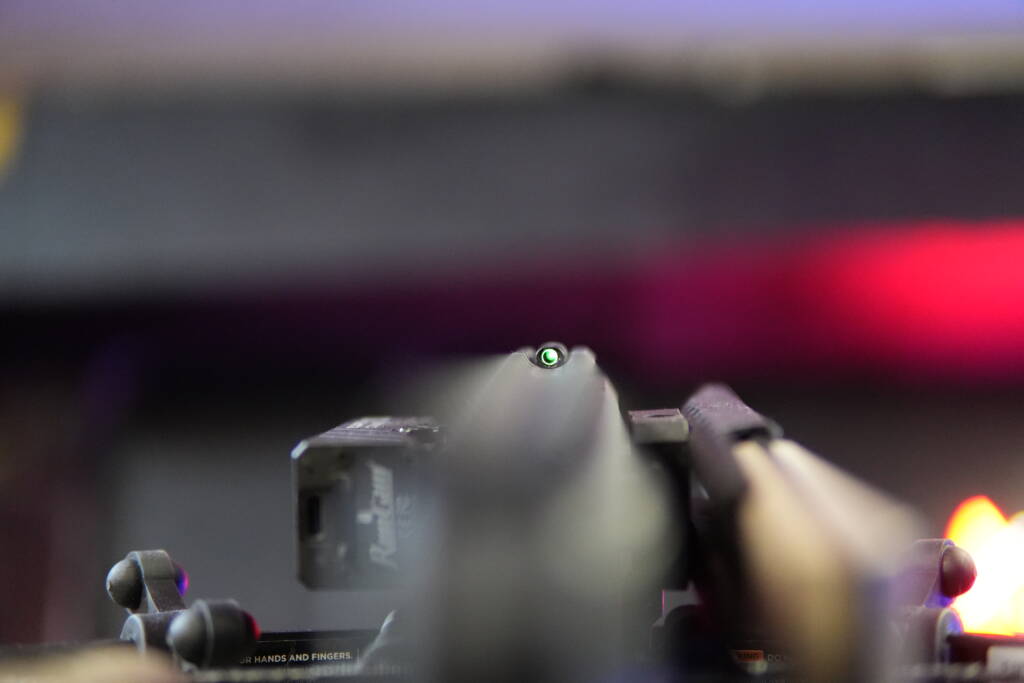

• Meprolight tritium night sight (battery-free)

Steambow describes the Professional version as optimized for defensive / security use, and they include a tritium sight — which is worth a special mention: no batteries, no charging, always “on.”

(Also: tritium sights can be restricted in some countries — Steambow themselves flag that, so again: check local legality.)

Real performance:
my Garmin Xero C1 measurement (~34–35 J)

I measured the PD5 Professional using a Garmin Xero C1 chronograph with a ~19 g test arrow and recorded about 34 Joules (give or take depending on arrow type and setup). This measurement is documented on my YouTube channel Modern Archery Germany — I’ll link the video directly in the post so readers can see the numbers and method.
https://youtu.be/lNcqGAtWSvU

Steambow’s own product description for the PD5 Professional states “just over 30 joules” with their hunting arrows, which lines up nicely with what I’ve seen depending on projectile choice.

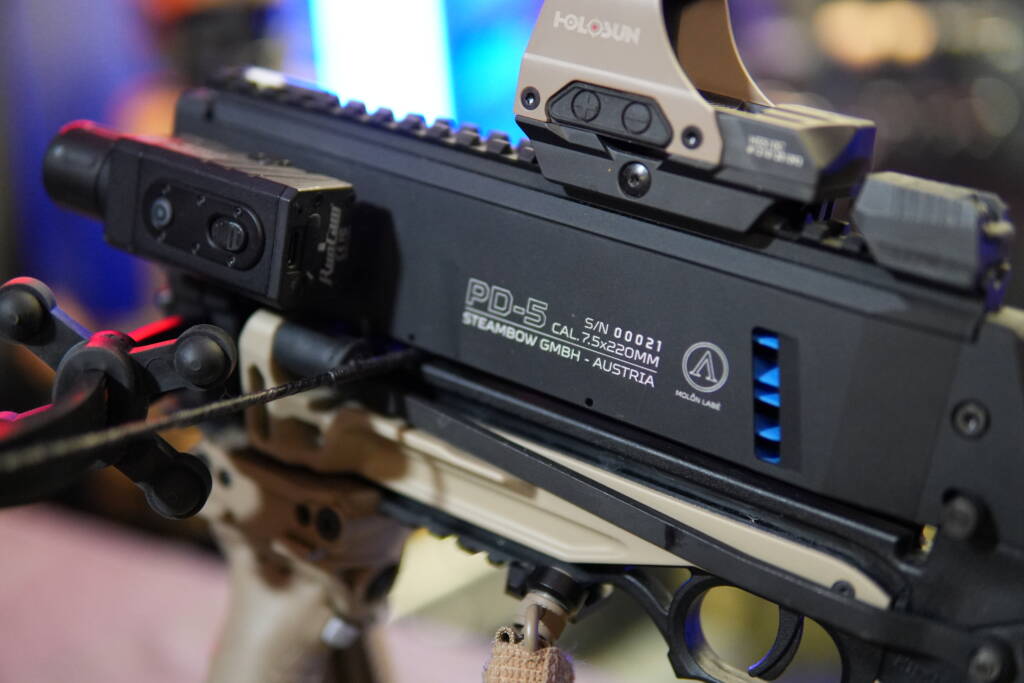

Build quality & materials: why it feels “premium”

This is where the PD5 justifies its position.

Steambow lists:

• Upper: milled 7075 aluminum

• Lower: glass-fiber reinforced polymer (up to 40% glass content), with reinforcements

• Steel where it matters (interfaces, cocking components)

• The overall “feel” is closer to a serious firearm-grade tool than a toy. Ergonomics and handling were clearly a priority in the development.

Official dimensions & weight (bare system):

• Length: 57.5 cm

• Height: 20.5 cm

• Width: 8 cm (without limb), 41 cm (with Protector limb)

• Weight: 1.95 kg

• My Weight (with Reddot and all aditional parts): 3.5 kg

My Long-Term Experience with the Steambow PD5

3,000+ Shots – and What Actually Wears

I’m now well beyond 3,000 shots on my PD5.

The Good News

• No structural parts replaced
• No system-breaking failures
• Outstanding reliability

The platform simply runs.

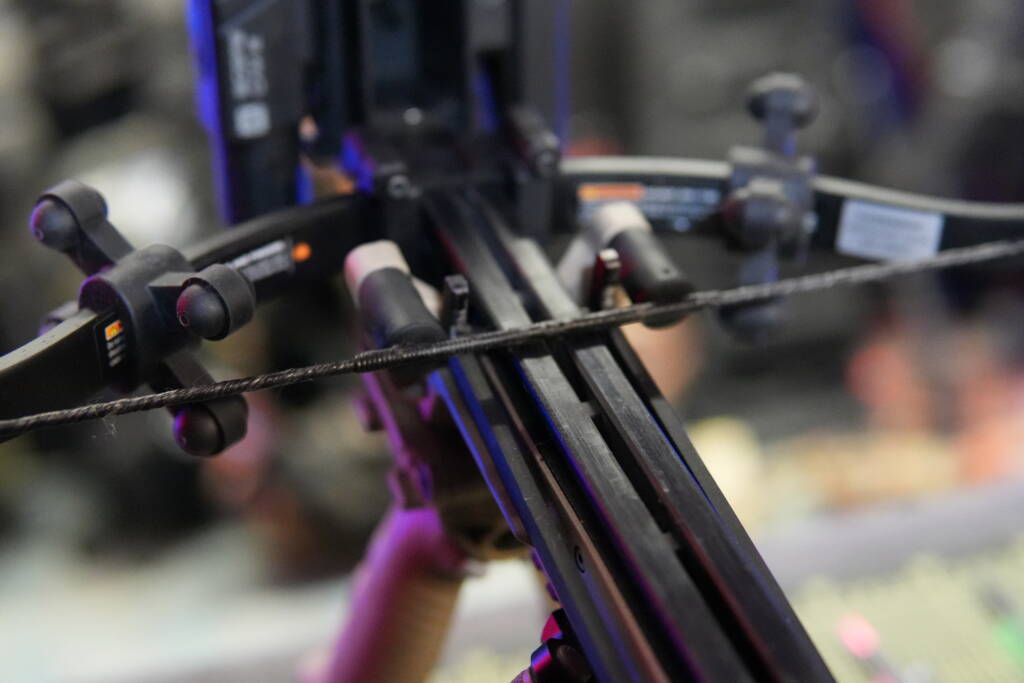

The Honest Part: What Actually Wears

The primary wear item is the string.

On the PD5, the geometry results in a sharper string angle compared to some other Steambow models. That’s part of why the platform delivers such impressive performance — but it also means:

More performance = more stress on consumables.

In early production batches, the claw/string interaction was tougher on the serving than necessary. I made a small adjustment on my own PD5 to make it more string-friendly, and Steambow has since confirmed improvements on later batches to optimize this behavior.

This isn’t “hate” — it’s simply physics and design trade-offs.

Modularity & Mounting Space
AR-Style DNA (AR-Series)

The PD5 is clearly built around modularity:

• Continuous top Picatinny rail (inclination-adjustable)
• Additional Picatinny sections for accessories
• Optional sling mounting points
• Integrated speedloader ecosystem

Steambow also recommends training with the same arrow type you intend to rely on.
Point of impact and handling characteristics differ noticeably between sport arrows and hunting / deployment arrows.

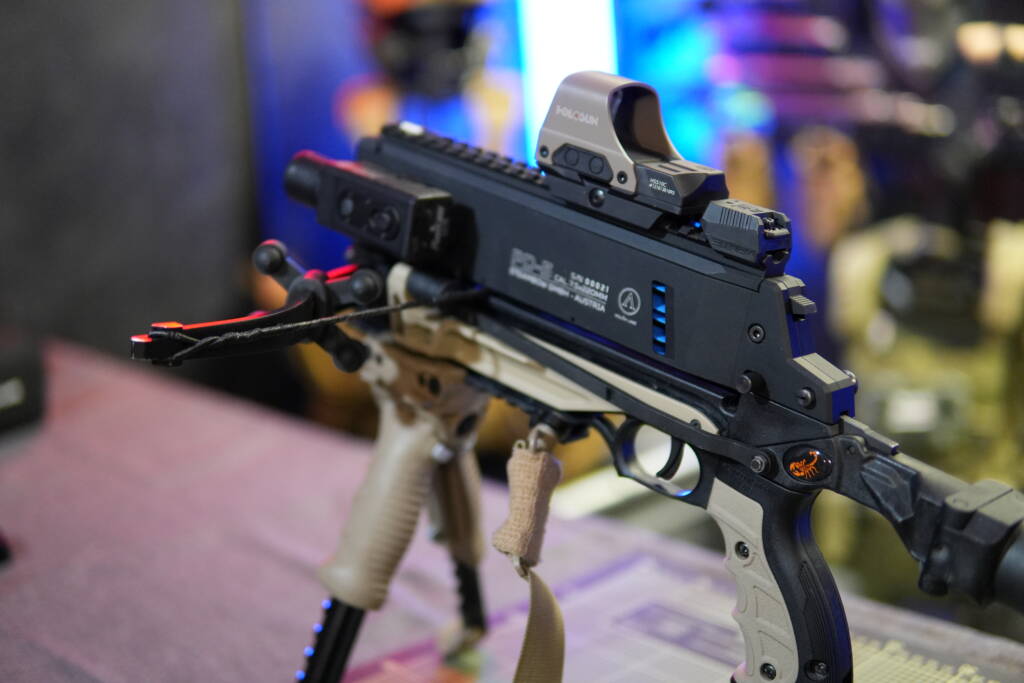

My Personal Setup – and Why It Works

Here’s what I currently run:

• Holosun HS510C red dot
  → Fast target acquisition and quick transitions. Very rugged, Thanks to the solar cell, ultra-long battery life. Easy to remove if I want to run iron sights.
• FAB Defense GL Core stock
  → Very comfortable to use, with a solid cheek point. The flat underside adds stability and improves overall handling.
• FAB Defense T-Pod Grip
  → Large and robust grip that provides increased leverage and control. With a click, it deploys into a bipod, allowing the platform to be set down and stabilized when needed.
• Steambow K2 Knife
  → Lightweight, well-balanced, and easy to handle. It integrates cleanly into the setup while remaining quickly accessible.
• Agilite Reflex3D Riflesling
  → Running it since its release. In my opinion, one of the best options available. In general, I strongly recommend a two-point sling, though other setups can work as well.
• UTG Sling Mount
  → high quality sling mount. Works perfect with the adapters from the Agilite ReFlex3D Sling. Holds the sling perfectly in place for quick lenght adjustments.

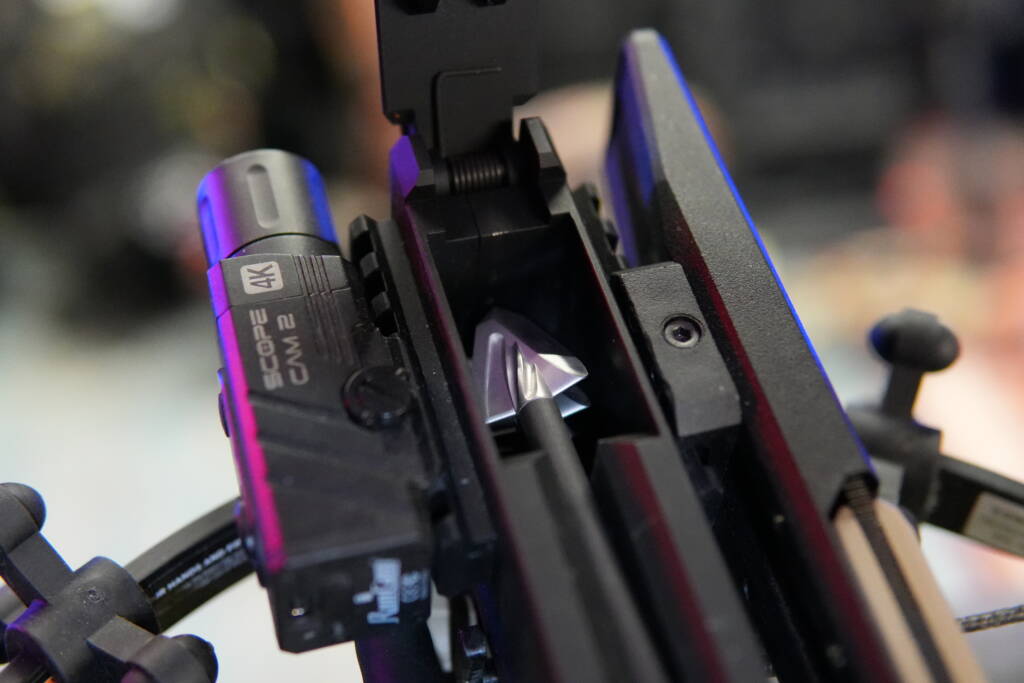

• Scope Cam 2.0 and Mantis X10
  → Used for shot analysis and training. They help objectively evaluate technique and continuously improve performance.

Why the K2 on the PD5?

Not just “tacticool.”

A bit of forward mass helps:

• The platform settle more naturally on target
• Slightly dampen vibration

And practically speaking, having a robust tool mounted to the system is genuinely useful for field tasks.

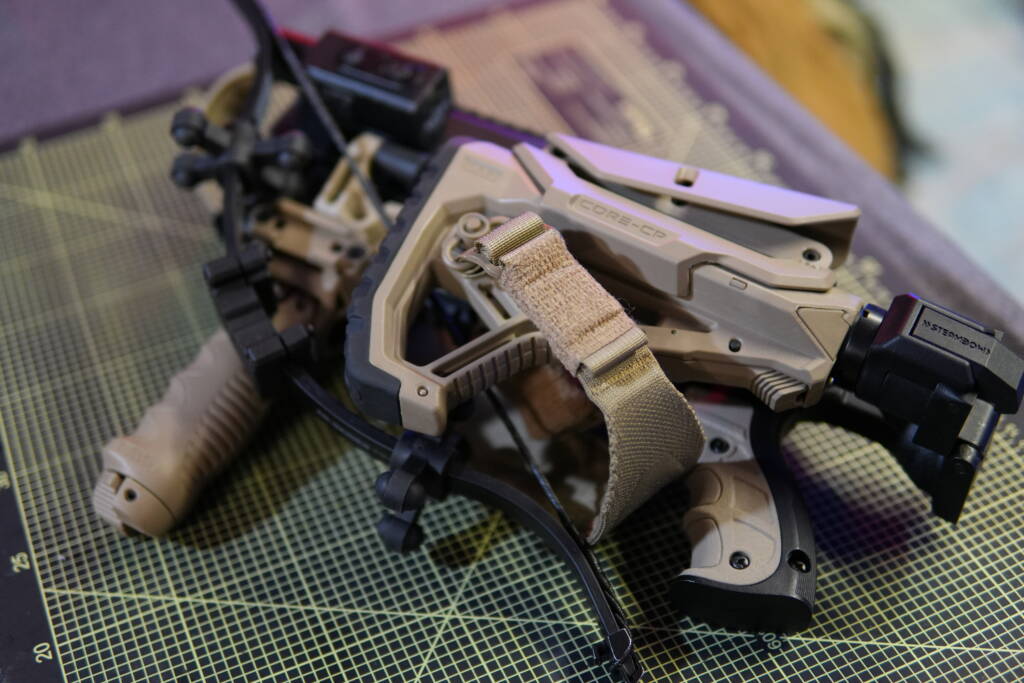

Compact Transport & Rapid Deployment

One feature that is often overlooked is how incredibly compact the PD5 becomes when disassembled.

By removing the locking pin, opening the upper and taking out the limb, the whole system can be secured again with the pin. In this configuration, the PD5 fits into a very small bag — roughly the size of a slim laptop case. The compact limb design makes this possible.

What makes it even better: the PD5 can be transported partially loaded. With the transport clip installed, the magazine is mechanically blocked, preventing bolts from dropping out. This allows a safe four-bolt partial load (out of five).

The “Remove Before Flight” tag clearly indicates the locked state.

Deployment is extremely fast: unfold the stock, remove the locking pin, install the limb, close and secure the upper, pull the transport tag — and you immediately have access to four ready bolts within seconds.

Compared to earlier models that required loosening a thumbscrew — or even an Allen screw — this is a significant improvement in speed and practicality.

Why It’s My Favorite Crossbow Right Now

Even though I own more expensive models, I keep returning to the PD5 because it hits a rare balance:

• Compact and easy to transport (folding stock system)
• Premium materials and machining
• “Large-caliber” arrow format (7.5 × 220 mm)
• Excellent reliability
• Fast follow-up potential thanks to the reinforced break-action cocking system

It’s:

• Sport
• Training
• Serious engineering

While still being quiet and cost-effective enough to practice regularly.

Transparency Note

I want to be fully transparent:

I’ve been a shooting bow since youth, benn crossbow enthusiast since 2020, Steambow fan since 2021 and have been collaborating with Steambow as an affiliate partner since august 2024 through my YouTube channel, for tactical crossbows Modern Archery Germany.

If you choose to purchase through my affiliate link, you’ll receive a 10% discount with a single click, and I may earn a small commission at no additional cost to you.
https://steambow.at/collections/all?ref=MAG10

That means I’m not completely independent. But I am always free to say what ever I want.

I only collaborate with brands I already use and genuinely trust. From my perspective, Steambow is currently one of the most:

• innovative
• feedback-driven
• consistently solid

brands in this niche.

Your support helps me continue creating independent content and long-term testing like this.
